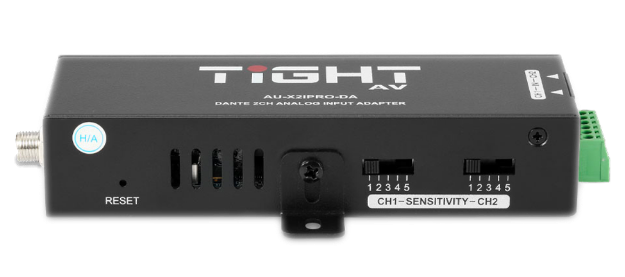

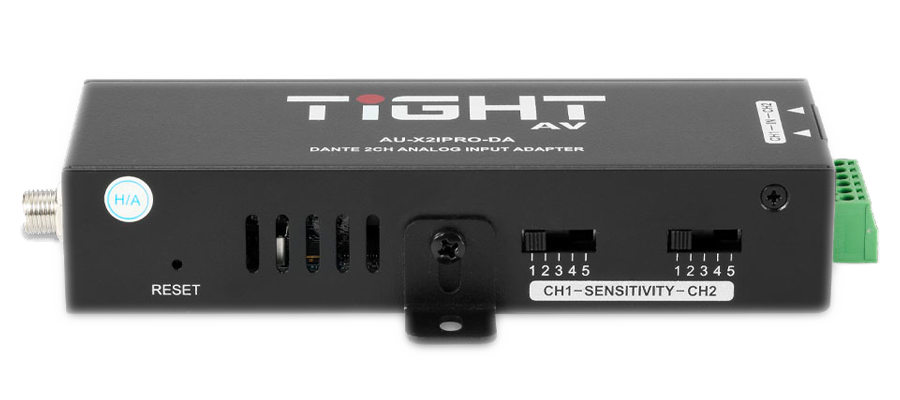

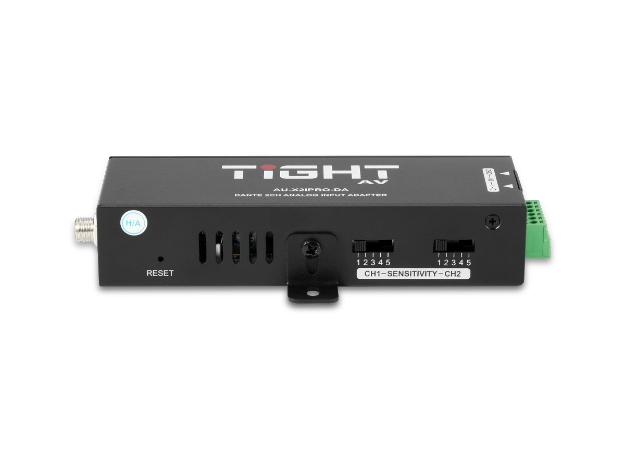

DANTE 2-CHANNEL INPUT ADAPTER

Model name: AU-X2IPRO-DA
DANTE 2CH PRO INPUT ADAPTER INCL. INPUT SENSITIVITY
The AU-X2IPRO-DA from TiGHT AV effortlessly integrates two channels of analog audio into your Dante network. Utilizing Audinate’s original Dante Ultimo chip, the unit supports sample rates up to 96kHz.

Featuring an installer-friendly interface equipped with phoenix analog connectors, input sensitivity settings via dip switch, a reset button, and a rugged metal housing, the AU-X2IPRO-DA offers simplicity and cost-efficiency. It provides a straightforward solution for seamlessly connecting analog equipment to a Dante network in professional installations.

For simplified setup, PoE support enables easy installation using a PoE-capable network switch or a separate power supply. Additionally, optional Phoenix to XLR cables are available, offering increased connectivity options.

Audio

Max input level (balanced)

+24 dBu / +4 dBu / 0 dBu/ 0 dBV /-10 dBV

Frequency Response

20Hz to 20kHz (-/+0.5dB)

Impedance

7.2k Ohm balanced

3.6k Ohm unbalanced

Dynamic Range

>100 dB

Signal to Noise Ratio

>100 dB

THD

<0.01% @+4 dBu


Dante


Sample Rate

44.1kHz, 48kHz, 96kHz

Bit Depth

24

Dante Device Latency

1, 2 or 5ms (configurable using Dante Controller)

Network Transport

Dante Audio over IP

AES67 RTP


General


Operation Temperature

-5 to +55 (+23° to +131°F)

Storage Temperature

-25 to +70

(-13° to +158°F)

Power

802.3af PoE or DC12V

Power Consumption

2.65W (Max)

Dimension (W*H*D)

128 x 26 x 48 mm

Net Weight

195g

Compliance

FCC, CE

Environmental

RoHS, REACH, WEEE
