DANTE 2-CHANNEL OUTPUT ADAPTER

Model name: AU-X2OPRO-DA
DANTE 2CH PRO OUTPUT ADAPTER INCL. OUTPUT GAIN

The AU-X2IPRO-DA by TiGHT AV conveniently delivers two channels of analog audio into your Dante network. Utilizing Audinate’s original Dante Ultimo chip, the unit supports sample rates up to 96kHz.

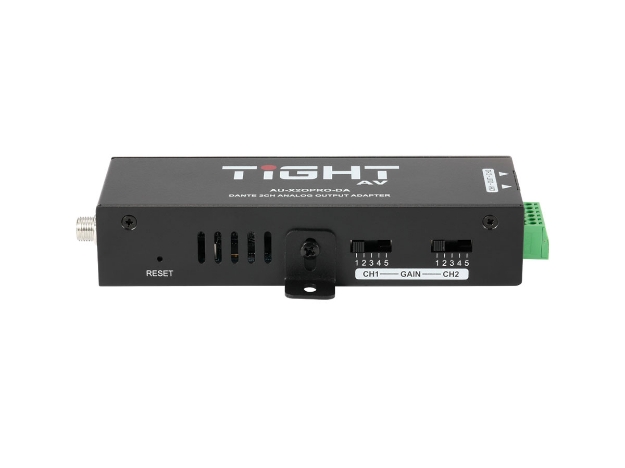

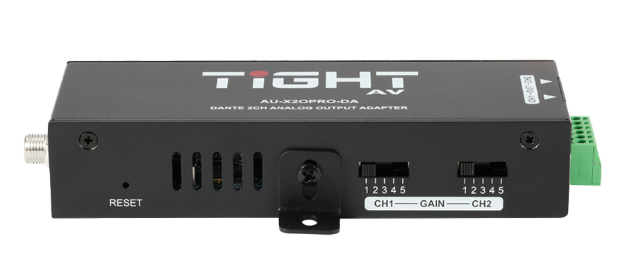

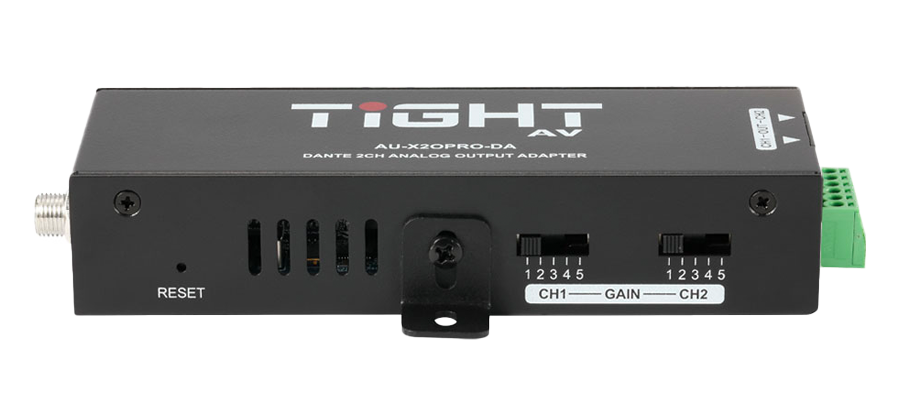

Designed for easy installation, it features phoenix analog connectors, output gain settings through dip switches, a reset button, rugged metal housing, and the flexibility of local power or POE-injection. The AU-X2OPRO-DA offers a straightforward and cost-effective solution for integrating analog equipment into professional Dante network setups.

For a simplified setup, PoE support allows easy installation via a PoE-capable network switch or a separate power supply. Optional accessories include Phoenix to XLR cables, enhancing versatility in your connectivity options.



Audio

Max output level (balanced)

+18 dBu / +4 dBu / 0 dBu/ 0 dBV /-10 dBV

Frequency Response

20Hz to 20kHz (-/+0.5dB)

Impedance

150 Ohm balanced

75 Ohm unbalanced

Dynamic Range

>100 dB

Signal to Noise Ratio

>100 dB

THD

<0.01% @+4 dBu


Dante


Sample Rate

44.1kHz, 48kHz, 96kHz

Bit Depth

24

Dante Device Latency

1, 2 or 5ms (configurable using Dante Controller)

Network Transport

Dante Audio over IP

AES67 RTP


General


Operation Temperature

-5 to +55 (+23° to +131°F)

Storage Temperature

-25 to +70

(-13° to +158°F)

Power

802.3af PoE or DC12V

Power Consumption

2.6W (Max)

Dimension (W*H*D)

128 x 26 x 48 mm

Net Weight

195g

Compliance

FCC, CE

Environmental

RoHS, REACH, WEEE
