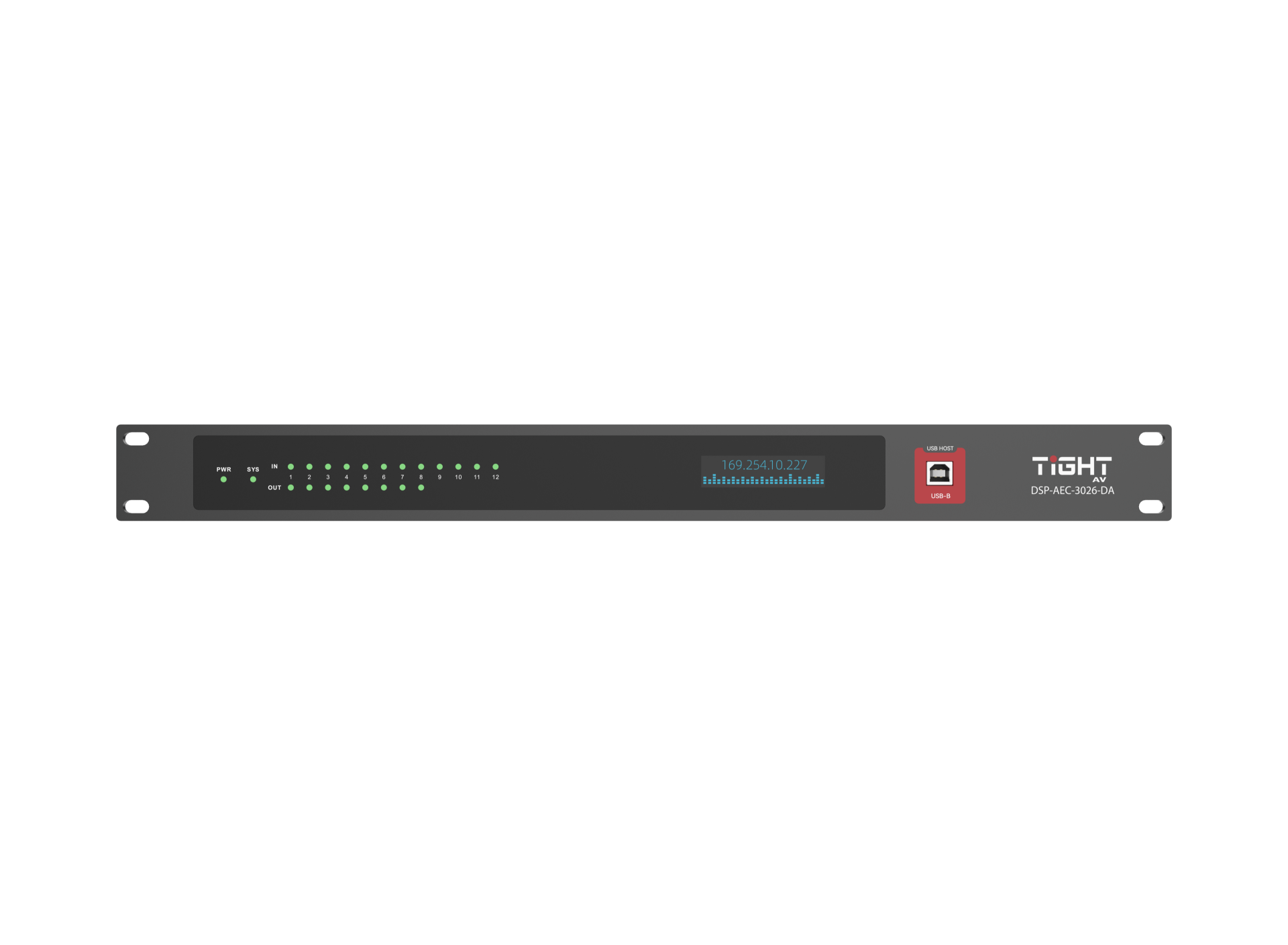

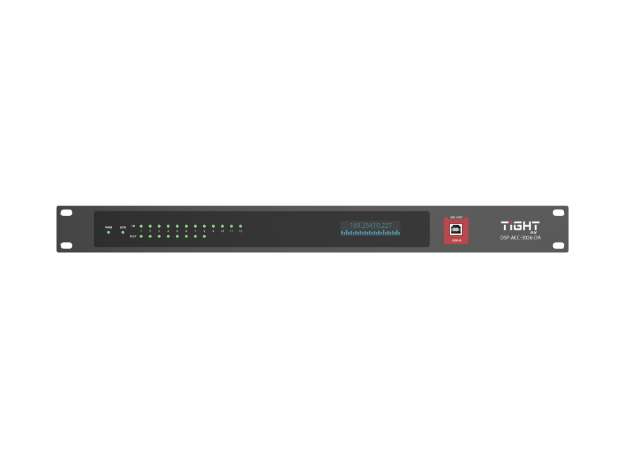

| DSP Processor |
|
| Type |
ADI SHARC 21489 |
| DSP Handling Capacity |
400 MIPS, 1,6 GFLOPS |
|
|
| Input |
|
| Inputs |
(12) Analog Mic/line Audio |
| Input Connector |
(3) 12-pin Green Terminal Blocks |
| Phantom Power |
48V (Max 10mA), selectable per input |
|
|
| Output |
|
| Outputs |
(8) Analog Line Audio |
| Output Connector |
(2) 12-pin Yellow Terminal Blocks |
|
|
| Interface |
|
| Ethernet |
(1) LAN, 10/100 Base-T Ethernet |
| (2) LAN 10/100/1000 Base-T Ethernet |
| Ethernet Connector |
(3) RJ45 |
| USB |
(1) USB 2.0, Type B |
| Serial |
(1) RS-232, (1) RS-485 |
| Serial Connector |
(1) 6-pin Brown Terminal Blocks |
| GPIO |
(8) GPIO |
| GPIO Connector |
(2) 12-pin Blue Terminal Blocks |
|
|
| Audio Performance |
|
| Input Gain |
0 ~ 60dB in 3dB steps |
| Frequency Response |
±0.3dB (20Hz to 20KHz) |
| Maximum Level |
+18dBu |
| EIN |
<-125dB, 20Hz to 20kHz, A-Weighted |
| THD + Noise |
0.003%@4dBu |
| Input Dynamic Range |
110dB |
| Output Dynamic Range |
112dB |
| Background Noise |
-95dB, A-weighted |
| Common Mode Rejection Ratio @60Hz |
60dB |
| Channel Isolation @1KHz |
108 dB |
| Input Impedance (Balanced) |
5.4kΩ |
| Output Impedance (Balanced) |
600Ω |
| System Latency |
<5ms |
| Sample Rate |
48 kHz |
| Bit Depth |
24 Bit |
|
|
| Dante |
|
| Sample Rate |
44.1kHz, 48 kHz, 88.2 kHz and 96 kHz |
| Encoding Bit Depth |
16, 24 and 32 Bit PCM |
| Dante Device Latency |
1, 2, 3, 4, 5 or 10 ms |
| Network Transport |
Dante Audio over IP RTP |
|
|
| Network |
|
| Control Ethernet Port |
10/100 Base-T, auto-negotiation |
| Primary Dante Port |
10/100/100 Base-T, auto-negotiation |
| Secondary Dante Port |
10/100/100 Base-T, auto-negotiation |
|
|
| General |
|
| Power requirements |
AC110~240V, 50Hz~60Hz |
| Maximum Power Consumption |
<40W |
| Rack Space |
19" Rack (1HE) |
| Dimensions (W x D x H) |
482mm x 264mm x 44mm |
| Shipping Weight |
3kg |
| Operating Temperature |
0 ~ +40℃ |
| Storage Temperature |
-25 ~ +70℃ |
| Relative Humility |
10% - 90% |
| Compliance |
|
| Compliance |
FCC, CE |
| Environmental Compliance |
RoHS, REACH, WEEE |
