SPK1-C880T-WH | 8" 2-Way Ceiling Speaker, 70/100V and 8Ohm, 80W RMS, White

Model name: SPK1-C880T-WH

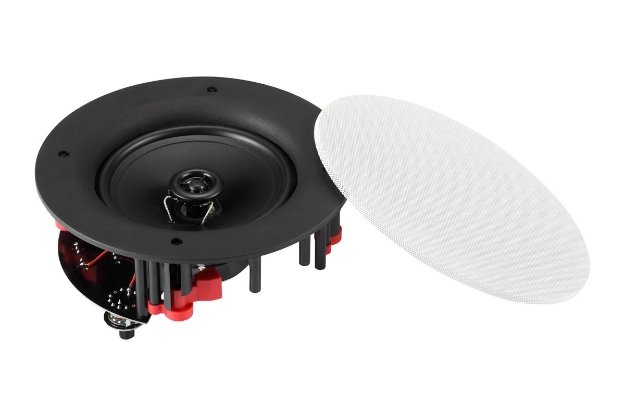

The C880T features a 8" polypropylene cone driver and a 0.75" mylar dome tweeter. With a frequency response of 50 Hz - 20 kHz (-10 dB) and a maximum SPL of 108 dB SPL, it is well suited for both speech and background music applications.

The C880T supports low impedance (80W RMS) and 70/100V operation, with transformer taps ranging from 1.25W to 15W. Spring clamp dog-legs makes installation a breeze, and a cardboard cutout template is included in the box. The white magnetic grille locks firmly to the speaker rim, giving the installation a clean and sleek look.

SPECIFICATIONS
Product Files

Technical Specifications
RMS Power	80W
Impedance	8 Ω (in low-impedance setting)
Sensitivity(1m/1W)	89dB
Max SPL (1m)	108dB (low-impedance)*
Frequency Range (-10dB)	50Hz-20kHz
Coverage	120º
Woofer Type	8" Polypropylene cone with rubber edge
Tweeter Type	0.75"(20mm) Titanium pivoting dome tweeter
Crossover Slope	12dB/Octave
Dimension	Φ281 x 111mm
Cutout Size	Φ258mm
Ceiling Thickness	Spring clamps can support up to 30mm ceiling thickness
Net Weight	2.25 kg
Shipping Weight	2.80 kg
Grille	Magnetic round grille. Color: White
Transformer	Knob Style 70V：1.25W-2.5W-5W-10W & 8Ω, 100V：2.5W-5W-10W-15W & 8Ω
Compliance	CE, FCC
Environmental Compliance	RoHS, REACH, WEE
Warranty	Limited 5 years warranty

*Half-Space (in ceiling)

Product Files

Documents

User Manual SPK1-C880T-WH
