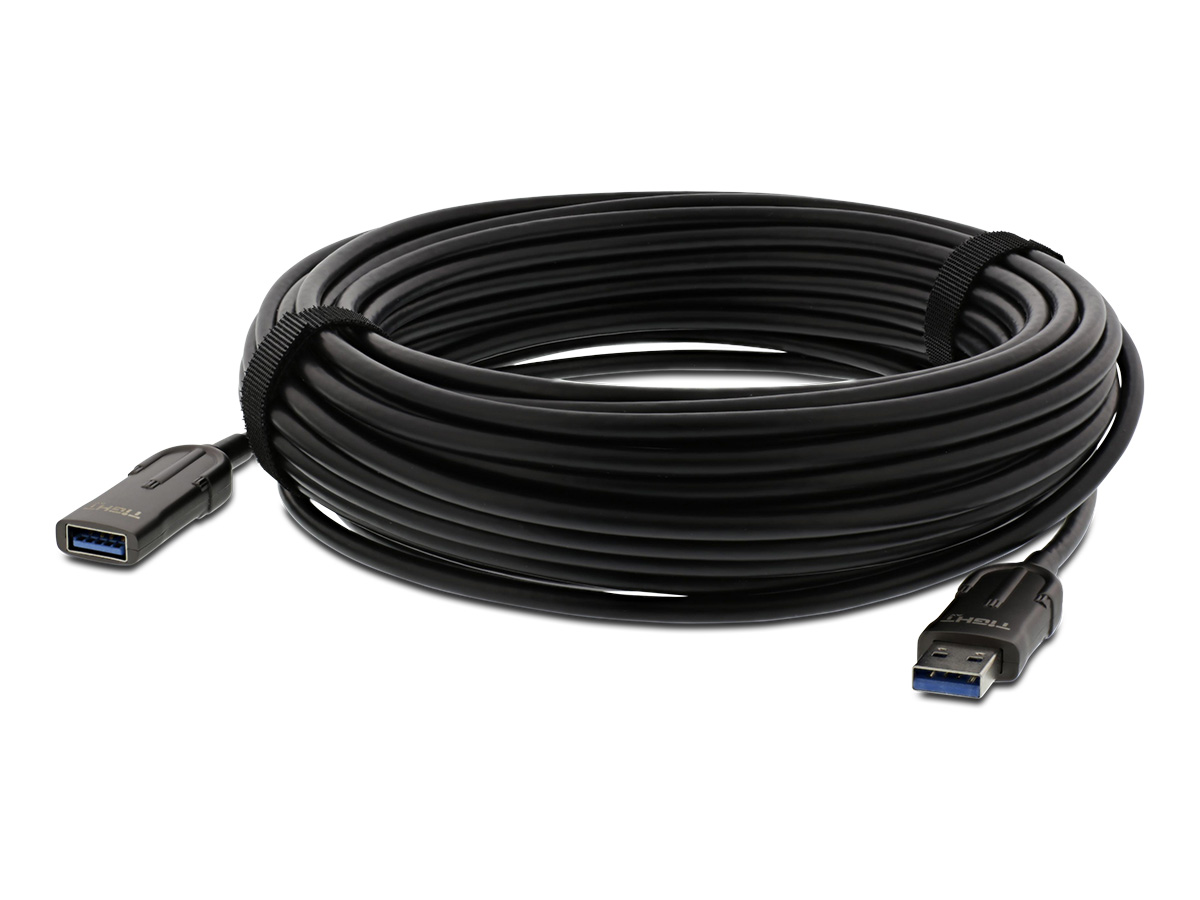

USB ACTIVE FIBER CABLES

Model name: USB3-MA/FA-AOC
USB 3.1 GEN 1/GEN 2 AOC (ACTIVE OPTICAL CABLE)

Full bandwidth of 10Gbps. Powered by the USB Type A Male device. No external power supply needed. Available in 15m and 30m lengths.



> Full bandwidth of 10Gbps.

> Proprietary Low Power High Bandwidth Chipset.

> EMI (electromagnetic interference) protection.

> Powered by the USB Type A Male device. No external power supply needed.

> Durable and strong.

> Auto Low Latency Mode.

> Support hot swap.

> Pull Cover included for easy pulling of cables

*

Key Features

Models

USB3-MA/FA-AOC15 USB3-MA/FA-AOC30

Protocol specification

USB3.1Gen2/USB3.1Gen1/USB3.0

Transmission speed

10Gbps/5Gbps

Connector

Input

USB Type A Male (Gold plating)

Output

USB Type A Female (Gold plating)

Cable

Cable specifications

1C+2C+2C+F+Non Woven Fabric+B(28#+20#)

Optical fiber specifications

2*Multi-mode OM3 optical fiber

Available lengths

USB3-MA/FA-AOC15: 15meters

USB3-MA/FA-AOC30: 30meters

Outer sheath material

PVC

Outer sheath color

Black

Outer diameter

4.8mm±0.1mm

Cable bending radius

6mm

Connector max pulling strength

150N (15kg,33lbs)

Cable max pulling strength

500N (50kg,110lbs)

Environment

Operating temperature

-20℃ to +70℃

Storage temperature

-40℃ to +80℃

Power

Input voltage

+5V

Energy consumption

≤500mW

Attention

Please avoid excessive bending of the optical fiber during use, please refer to the

bending radius for details.
