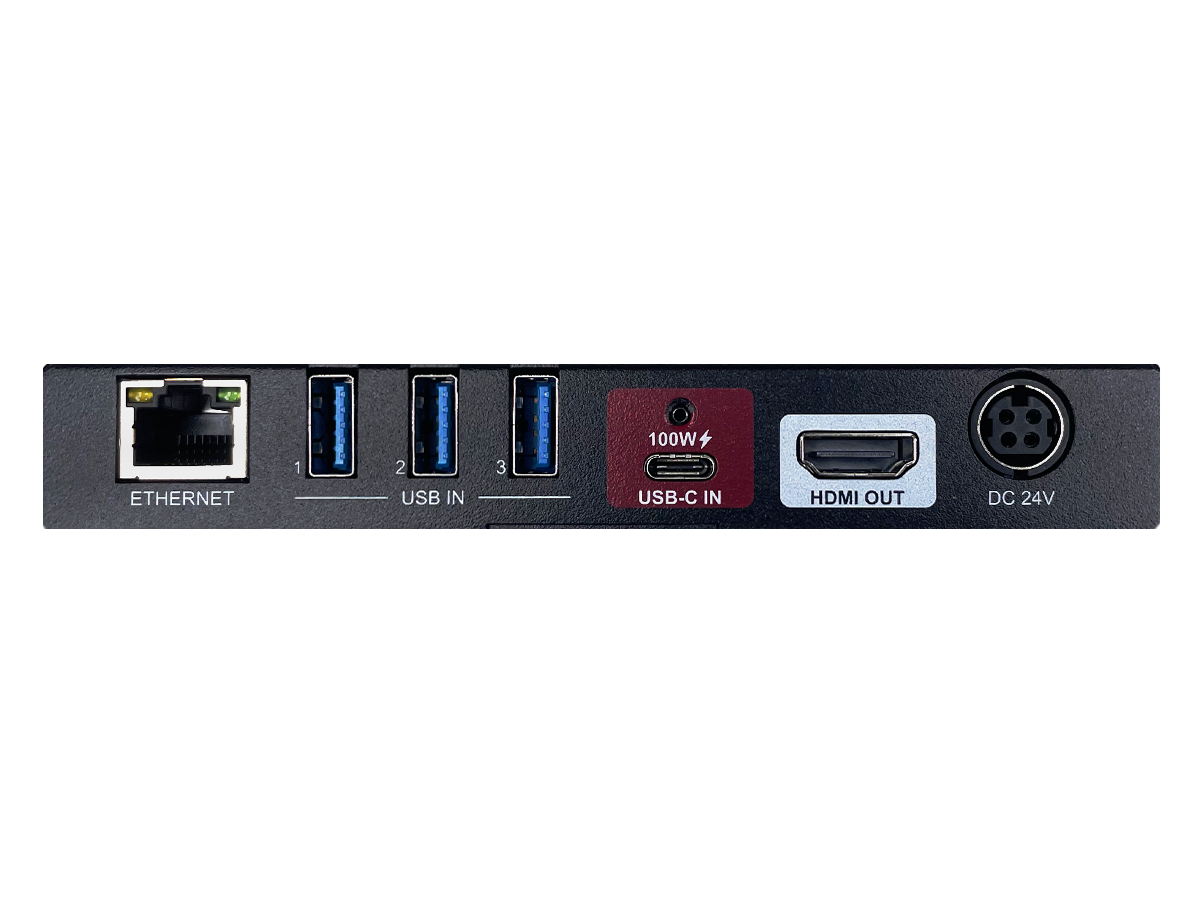

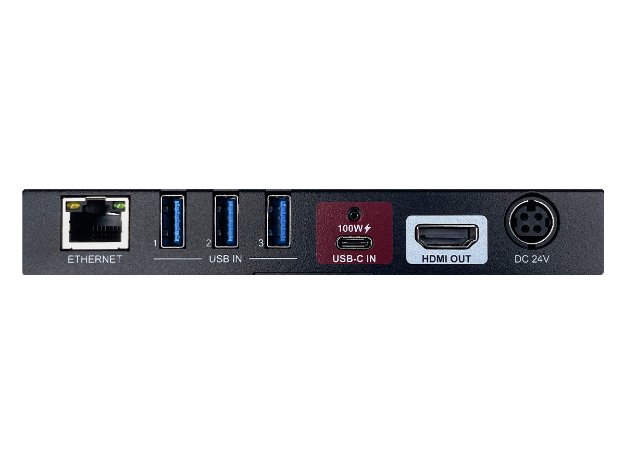

USB-C TO HDMI CONVERTER

Model name: VC-C101U-ETH
USB-C TO 18G HDMI2.0 CONVERTER WITH USB AND ETHERNET

The VC-C101U-ETH converts 4K@60Hz 4:4:4(max) DisplayPort alt mode signal over USB-C video input to 4K@60Hz 4:4:4(max) HDMI 2.0 video output.



For the USB-C input interface, it also supports USB 3.2 Gen2 data transfer, Gigabit LAN and 100W fast-charging.



The converter includes three USB 3.2 device ports and one Ethernet Gigabit LAN port.



Features

  • Input supports DisplayPort Alt mode up to 4K@60Hz 4:4:4 using DisplayPort 1.4 (DisplayPort 1.2 is limited to 4K@30Hz 4:4:4).
  • Output supports HDMI 2.0, 4K@60Hz 4:4:4.
  • HDCP 2.3 support.
  • USB-C input supports 100W USB Power Delivery.
  • Supports USB3.2 Gen2 (up to10Gbit/s) data transfer via USB-C.
  • 3x USB 3.2 device ports for camera, keyboard and mouse.
  • Ethernet Gigabit LAN pass-through via USB-C
  • No software drivers required - Plug and Play.

Video Input

Input

(1) USB

Input Connector

(1) USB-C

Input Resolution

Up to 4K@60Hz 4:4:4 (HBR3)

USB Standard

USB3.2 Gen2

Video Output

Output

(1) HDMI

Output Connector

(1) Female type-A HDMI

HDMI Output Resolution

Up to 4K@60Hz 4:4:4

HDMI Standard

2.0b

HDCP Version

2.3 compliant (backwards compatible)

USB

Connector

(3) USB-A, (1) USB-C

USB Standard

(3) USB-A: USB 3.2 Gen 1, 5V1A External Power Supply

(1) USB-C: USB 3.2 Gen 2, DisplayPort Alt mode, 100W External Charging

Ethernet

Standard

10/100/1000Base-T

General

Bandwidth

18Gbps

Operation Temperature

-10 ~ +55

Storage Temperature

-25 ~ +70

Relative Humility

10% - 90%

Power Supply

Input:100V~240V AC; Output: 24V DC 6.25A

Power Consumption

108W(Max)

Dimension (W*H*D)

145mm x 22mm x 80mm

Net Weight

290g

Compliance

FCC, CE

Environmental Compliance

RoHS, REACH, WEEE
