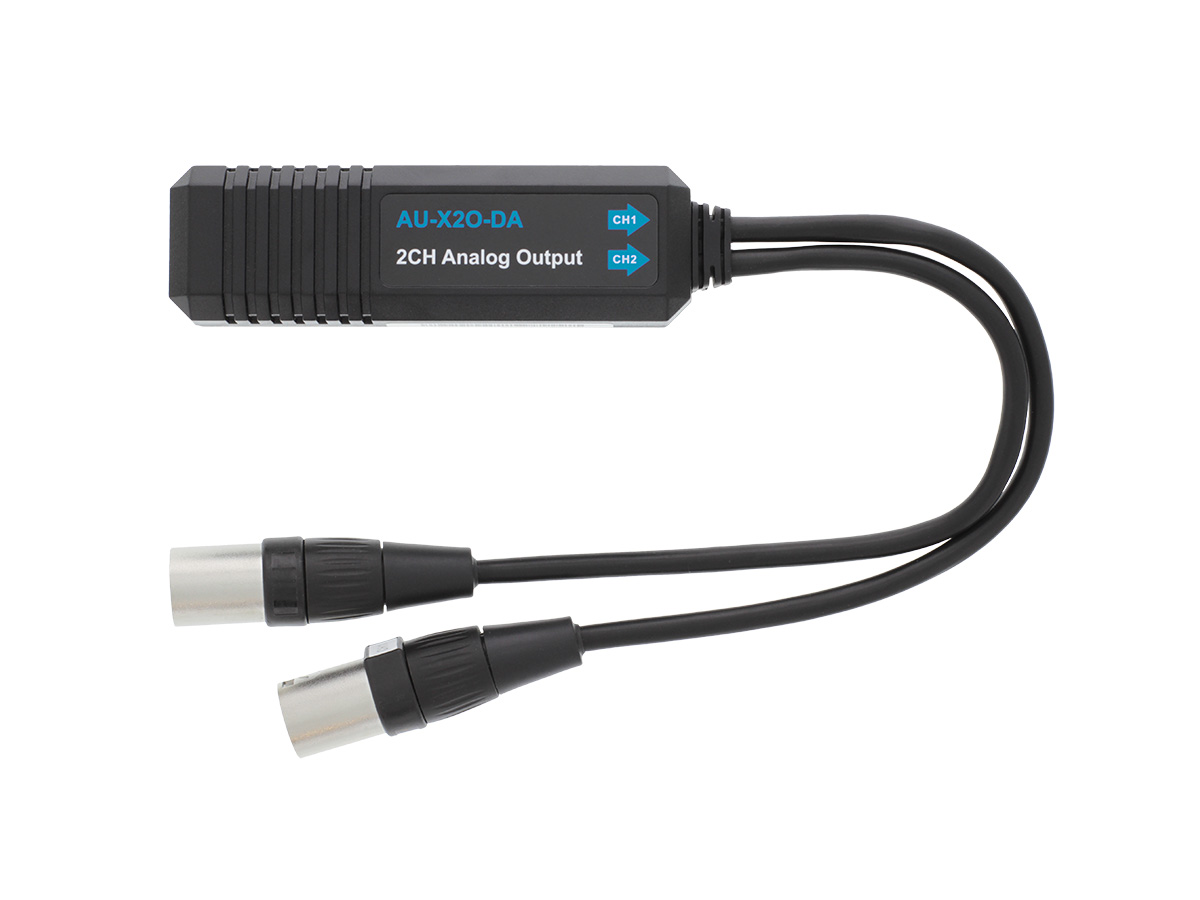

Dante 2-channel XLR Output Adapter

Model name: AU-X2O-DA
PLUG-AND-PLAY PoE DANTE INTERFACE

AU-X2O-DA from TiGHT AV outputs two channels of analog line level audio from your Dante network.  It supports sample rates up to 96kHz, using Audinate’s original Dante Ultimo chip.



Featuring two male XLR standard connectors, the AU-X2O-DA is a simple and cost-efficient solution to connect analog equipment to a Dante network.



PoE support allows for a simplified installation via a PoE-capable network switch or from a separate PoE injector.



KEY FEATURES:



-Plug and Play
-2 x line outputs on standard XLR male connectors
-Dante and AES67 support
-24-bit audio support
-Supports 802.3af PoE
-Dante Controller and Dante Domain Manager compatible

AUDIO

Max signal level

+18 dBu / +4 dBu / 0 dBu

0 dBV /-10 dBV

Frequency Response

20 Hz to 20 kHz (-/+0.5dB)

Impedance

150 Ohm balanced

75 Ohm unbalanced

Dynamic Range

>100 dB

Signal to Noise Ratio

>100 dB

THD

<0.01% @+4 dBu



DANTE

Sample Rate

44.1 kHz, 48 kHz, 96 kHz

Bit Depth

24

Dante Device Latency

1, 2 or 5 ms (configurable using Dante Controller)

Network Transport

Dante Audio over IP

AES67 RTP

Model Name

AU-X2O-DA



GENERAL

Connectors

2 XLR-M

Operation Temperature

-5 to +55 (+23° to +131°F)

Storage Temperature

-25 to +70℃

(-13° to +158°F)

Power

802.3af PoE

Power Consumption

2.6W (Max)

Dimension (W*H*D)

30 x 28 x 114 mm

Cable length

300mm

Net Weight

145g

Compliance

FCC, CE

Environmental

RoHs, WEEE
